Echo Sounder ES 80S/ES 100S

Echo Sounder ES 80S/ES 100S yang kami jual adalah produk baru dengan kualitas terbaik dan serta memiliki sertifikasi kelayakan.

Introduction

  • DSP Technology
  • Lowest Blind Field
  • High Resulotion Color LCD
  • True-Color LCD
  • Independent Gain Control
  • SD Data Card
  • Adopth High Precision Digital Signal Processing Technology(DSP)
  • Detect 0.2 M Ultra-low Water Level
  • 640 x 480 Resulution Offers You Clear Viewing
  • Suit to Sail in The Sunglight and At Night
  • Fully Independent Control of Dual-Channel Gain
  • Storage and Reply Echo Data and Rapidly Updating Software

In The Box

  • Main Unit x 1
  • Power Supply Cable, Installation
  • Material and Standard Spare Parts

Contact us

Description

Echo Sounder ES 80S/ES 100S details:

SPECIFICATION

  • Model: ES80S/ES100S
  • Display Size: 8″10″Color TFT LCD
  • Resolution: 640×480
  • Processing: Digital Signal Prccessing(DSP)
  • Frequency: 200KHz
  • Language; Chinese, English, Korean, Vietnamese
  • Voltage Range: 12-36V DC
  • Output Transmit Power: 3000,600W/1000-3000W
  • Range: 500m
  • Expansion Mode: OFF/ Auto/ Manual/ Bottom Lock
  • Expansion Rate: x2, x4, x8. xR (Actual Resolution)
  • Background Color: 8 colors
  • Pulse Length: 0.12-3.0ms
  • Measuring Accuracy: 0.1m
  • Lowest Blind: 0.2m
  • Sensitivity: 7 dB µ V
  • Auto Range: OFF/ON
  • Auto Gain: OFF/L/M/H
  • A-Mode: OFF/ON
  • Depth Alarm: OFF/In Range/ Out Range
  • Voltage Alarm: OFF/ON
  • Sweep Speed: 7 steps(Stop.1/8.1/4.1/2.xl,x2,x3)
  • Depth Unit: Meters(m), Feet(ft). Fathom(fa)
  • Scale Line: OFF/ON
  • Amplify Mode/ Zoom Mode: OFF/Bottom Lock/Auto Zoom/Manual Zoom
  • STC: OFF/L/M/H
  • T•power: OFF/L/M/H

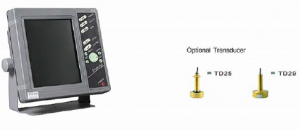

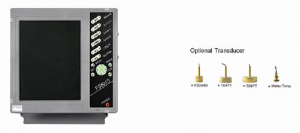

OPTIONAL TRANDUCER: TD25, TD26, TD29, PD204D



Produk Echo Sounder ES 80S/ES 100S  ini juga tersedia di Batam – Jakarta – Samarinda – Surabaya – China.
