FST Wind Speed & Direction Sensor

FST Wind Speed & Direction Sensor yang kami jual adalah produk baru dengan kualitas terbaik dan serta memiliki sertifikasi.

Introduction

FST Wind Speed/Direction Sensor is based on Hall Effect. The cup turns round once be blown. The wind speed/direction variable transfer into relative signal output. The base is made of high strength alloy and finish by surface treatment and is featured with waterproof, corrosion resisting. It can be used in harsh environment.

High-performance digital circuit is built in FST wind speed/direction sensors, it carefully designed the worling condition of RFI&EMI resistance and the surge voltage, it is featured with strong RFI&EMI resistance, wide power supply range and polarity protection, meeting ICE, CE (EMC) requirement. It can meet demands of working aloft, construction machinery, port operation, wind power generation system.

Include

Wind Speed Sensor

Wind Direction Sensor

Wind Speed Alarm Controller



Contact us

Description

FST Wind Speed & Direction Sensor details:

SPECIFICATION

Wind Speed Sensor

  • Output: Pulse signal (HZ) 0-5 VDC 4-20 mA
  • Working Voltage: 5 VDC 24 VDC 12-36 VDC (Common 24 VDC)
  • Testing Range: 0.5 m/s – 50 m/s
  • Start Wind Speed: <0.5 m/s
  • Accuracy: ±0.5 m/s (< 5 m/s) ±3%FS(> 5 m/s)
  • Working Environment: Temperature: -20°C – +85°C, Humidity: < 95% RH
  • Limit Wind Speed: Max 70 m/s 30 min
  • Electrical Connection: M12
  • Environmental Protection: IP65

Wind Direction Sensor

  • Output: 0-5 VDC 4-20 mA
  • Working Voltage: 12-30VDC (Common 24 VDC)
  • Testing Range: 0-360°
  • Start Wind Speed: <0.8 m/s
  • Accuracy: ±3° ±3%FS (>5 m/s)
  • Working Environment: Temperature: -20°C – +85°C, Humidity: < 95% RH
  • Limit Wind Speed: Max: 70 m/s 30 min
  • Electrical Connection: M12
  • Environmental Protection: IP65

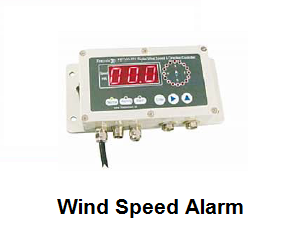

Wind Speed Alarm Controller

  • Testing Range: Wind speed: 0-5 m/s, Wind direction: 0-360°
  • Displat Resolution: Wind speed:0.1 m/s, Wind direction: ±5°
  • Display Error: Wind speed: ±3%FS, End direction: ±5°
  • Signal Input: Wind speed: voltage:0-5/10V, current: 4-20mA, pluse, Wind Direction: Voltage: 0-5/10V, Current: 4-20mA
  • Power Supply: 12-30VDC, 110VAC, 220VAC
  • External Supply for Sensor 12VDC or 24VDC
  • Contact Capacity: 2 set relay contact output, 10A/220VAC
  • Wind Wind Speed Alarm Control: Pre-alarm, Alarm
  • Analog Output: Wind Speed/Wind Direction: 4-20mA
  • Communication: RS485 digital communication output



Produk FST Wind Speed & Direction Sensor ini tersedia di kota Batam, Jakarta, Samarinda, Surabaya, China.
