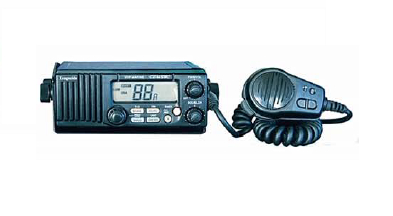

Marine VHF Radio Telephone CZ-M59C
Marine VHF Radio Telephone CZ-M59C yang kami jual adalah produk baru dengan kualitas terbaik dan serta memiliki sertifikasi kelayakan.
Introduction
CZ-M59C Telephone is an andvaced marine VHF radi telephone, featured by a high stability, easy operation, intuitive display and effective communication in terms of application, adopting high-quality components and equipped with waterproofing devices.
Description
Marine VHF Radio Telephone CZ-M59C details:
SPECIFICATION
GENERAL
- Frequency Range: 156.025~163.275 MHZ
- Channel Spacing: 25KHZ
- Number of Signal Channels: 97 (Including 10 meteorological signal channels)
- Modulation Mode: DC 13.8V ±15%
- Power Supply: At The Transmitting
- Current Consumption(13.8V): GA/1A; At the standby state: 250mA
- State: 6A/1A; At the standby state: 350mA
- Frequency Stability: ±10PPm
- Range of Operation Temperature: -15°C~-55°C
TRANSMITTER
- Transmitting Frequency: 156.025~163.275 MHZ
- Output Power: <25W / 1W
- Modulation Mode: FM
- Maximum Frequency Deviation: ±5 KHZ
- Modulation Sensitivity: <17mV
- Modulation Distortion: <7%
RECEIVER
- Receiver Frequncy: 156.025~163.275 MHZ
- Receiving System: Doublo-Conversion Super Heterodyne
- Intermediate Frequency: 1st IF: 21.4 MHZ; 2nd IF: 455 KHZ
- Reference Sensibility: <0.25 µ V
- Threshold Squelch Opening Sensitivity: <0.15µ V
- Deeply Squelch Opening Threshold: >5 KHZ
- Audio Distortion: <7%
- Adjacent Channel Selectivity: >65dB
- Inter-Modulation Immunity: >65dB
- Modulation Receiving Bandwidth: >2×5 KHZ
Produk Marine VHF Radio Telephone CZ-M59C ini juga tersedia di Batam – Jakarta – Samarinda – Surabaya – China.
