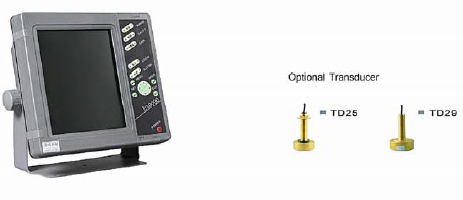

Echo Sounder ES 9000-08/10

Echo Sounder ES 9000-08/10 yang kami jual adalah produk baru dengan kualitas terbaik dan serta memiliki sertifikasi kelayakan.


  • DSP Technology
  • Lowest Blind Field
  • High Resolution Color Tcd
  • True-Color TFT LCD
  • Independent Gain Control
  • SD Data Card
  • Adopt High Precision Digital Signal Processing Technology (DSP)
  • Detect 0,2m Ultra-low Water Level
  • 640×480/800×600 Resolution Offers You Clear Viewing
  • Suit to Sail in The Sunlight and At Night
  • Fully Independent Control of Dual-Channel Gain
  • Storage and Reply Echo Data and Rapidly Updating Software

In The Box

  • Main Unit x 1
  • Power Supply Cable, Installation
  • Material and Standard Spare Parts

Contact us


Echo Sounder ES 9000-08/10 details:


  • Display Size: 8″/ 10″/ 12″Color TFT LCD
  • Resolution: 640 x 480
  • Processing: Digital Signal Processing(DSP)
  • Frequency: 200KHz
  • Language: Chinese, English, Korean, Vietnamese
  • Voltage Range: 12~36V DC
  • Output Transmit Power: 300~600W/1000~3000W
  • Range: 500m
  • Expansion Mode: OFF/ Auto/ Manual/ Bottom Lock
  • Expansion Rate: x2, x4, x8, xR (Actual Resolution)
  • Emission Rate: 3600 times/minute on top
  • Pulse Length: 0.12~3.0 ms
  • Measuring Accuracy: 0.1m
  • Lowest Blind: 0.2m
  • Sensitivity: 7 dB µ V
  • Auto Range: OFF/ON
  • Auto Gain: OFF/L/M/H
  • A-Mode: OFF/ON
  • Depth Alarm: OFF/In Range/ Out Range
  • Voltage Alarm: OFF/ON
  • Sweep Speed: 7 steps(Stop,1/8.1/4,1/2,x1,x2,x3)
  • Depth Unit: Meters(m), Feet(ft), Fathom(fa)
  • Scale Line: OFF/ON
  • Amplify Mode/ Zoom Mode: OFF/Bottom Lock/Auto Zoom/Manual Zoom
  • STC: OFF/L/M/H
  • Certification: CCS Certificate



Produk Echo Sounder ES 9000-08/10 ini juga tesedia di Batam – Jakarta – Samarinda – Surabaya – China.
